H8-IWB

H8-IWB

The Android interactive projector can be used with Windows system or Android system (built-in), supplied by Chinese factory, with long focal length, low cost, and is a portable project device for home entertainment or education.



Full HD 1080P Projector

Full HD 1080P Projector

Android System&interactive system.

WiFi 2.4G/5G

1080P FHD

300 ANSI

Multiple people can interact at the same time

Multiple people can interact at the same time

The projector has built-in Android system and interactive system.
The interactive system can use multi-point interactive touch function with Windows system and Android system
Windows 255-point touch
Android 16-point touch

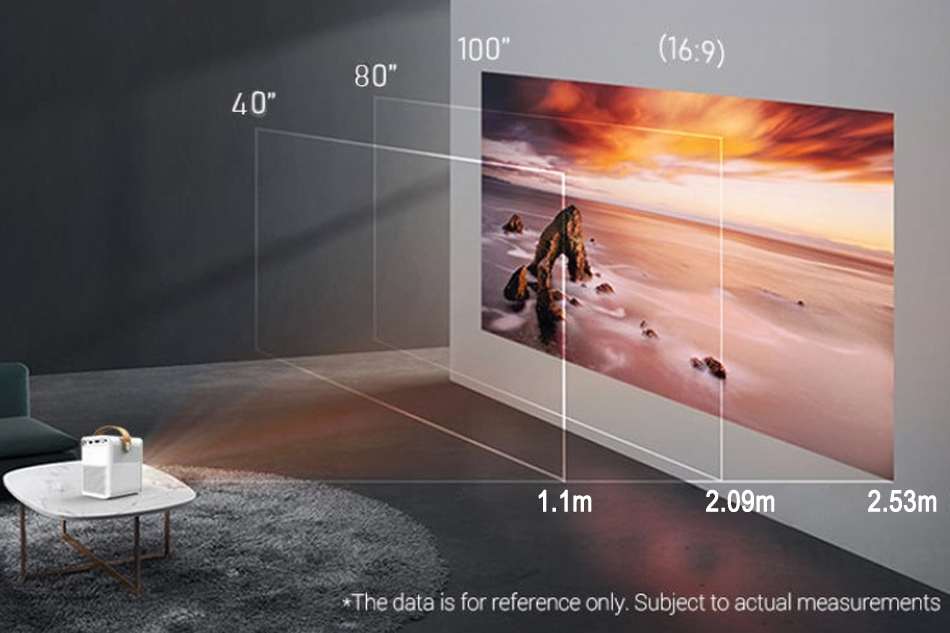

Enjoy Big Screen Anywhere

Enjoy Big Screen Anywhere

Image Size(Inch)

Projection Screen L*W(cm)

Lens-Screen (m)

40

0.91*0.5

1.1

50

1.13*0.62

1.36

60

1.36*0.75

1.62

70

1.57*0.86

1.85

80

1.78*0.98

2.09

90

2.0*1.11

2.32

100

2.20*1.2

2.53
Suitable for various scenarios

Suitable for various scenarios

Any flat/monitor/wall/glass/hard screen can be converted into a touch device and gaming device.



Basic Info.

H8

Overview
Product definition Portable interactive projection device for education/entertainment/home theater
Resolution ratio 1920*1080（True resolution）
Brightness 300 ANSI lumen
Appearance design Exquisite, fashionable and portable appearance
Main features can use interactive devices with Windows computers, or can use the Android system that comes with the projector for interaction devices.

Basic specifications
Software platform Android 9
Running Memory 1GB
Storage Memory 16GB
Video Output Up to 1080p 60Hz
Overall size 13.5×10.4×14.8 cm
Projection mode Forward projection, back projection, lifting projection

Hardware specifications
Optical mechanical parameters Optical machine Closed integrated optical machine
Light uniformity 75%
Light source 3.97" LCD Panel with LED Light Source
Resolution ratio 1920*1080
Projection ratio  0.97
Screen ratio Default 16:9 Aspect Ratio
Light source power 57W
Service life >20,000 hours of light source lifetime
Focus Mode Manual focus
Total weight 1.95kg
Screen size 30-120"
Projection distance  0.94-3.5m Projection Distance
Hardware parameters HDMI input HDMI1.4(720p/60fps，1080p/60fps)
Power key Short press to start up and long press for 3 seconds to shut down.
USB One USB 2.0 Host. Support USB flash disk and mouse。
Wi-Fi 2.4G/5GHz
Audio Stereo speaker (4 Ω, 3W * 2), headphone port (3.5mm).
Decode H.264,H265, VP9 4k/30fps； H263. MPEG-1/2/4, xvid，VP8, AVS, WMV9 1080p/60fps；
Indicator light Power on (blue), power off / standby (red)
Bluetooth Bluetooth remote control,  Bluetooth speaker

Software specification
Launcher HTV Launcher
Video Format Avi, mkv,mov, MP4, MPEG, mpg, flv, etc(hd 1080p / 60fps is supported basically, H264 is supported at most, 4k@30fps ）
Audio Format MP3,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Picture format JPG, JPEG, GIF, BMP, PNG
Pre installed app Setting、FileManager、NetrangeVideo、OwyaIWB、Withboard、whatsapp；
Trapezoidal correction ±50°Digital Reystone Correction with 4 sides KeystoneCorrection
Mouse Mode The remote control supports mouse mode

Accessories list
All Accessories list Projector*1,Remote control*1,19V DC Adaptor*1, Instrucion manual*1,E-Pen*1, 1m HDMI cable*1, 1m Tpye c*1.
Interactive Entertainment Equipment Mini Projector interactive touch game system meeting board smart interactive whiteboard wall video games
