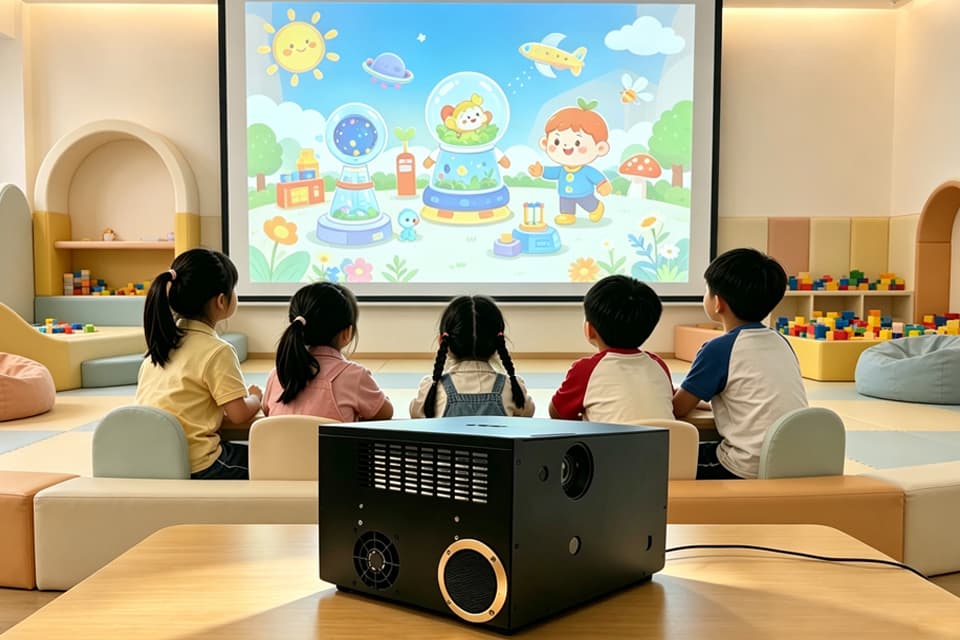

The OwayBoard interactive projection all-in-one system offers a comprehensive, one-stop interactive entertainment solution. Its integrated design ensures hassle-free installation. Capable of projecting interactive visuals onto both walls and floors, it features a wide range of activities—from creative doodling to competitive motion-sensing games—and delivers an even more immersive experience when paired with interactive spray guns or spray cans. It is a blockbuster attraction for driving foot traffic to indoor playgrounds, early education centers, and shopping malls!

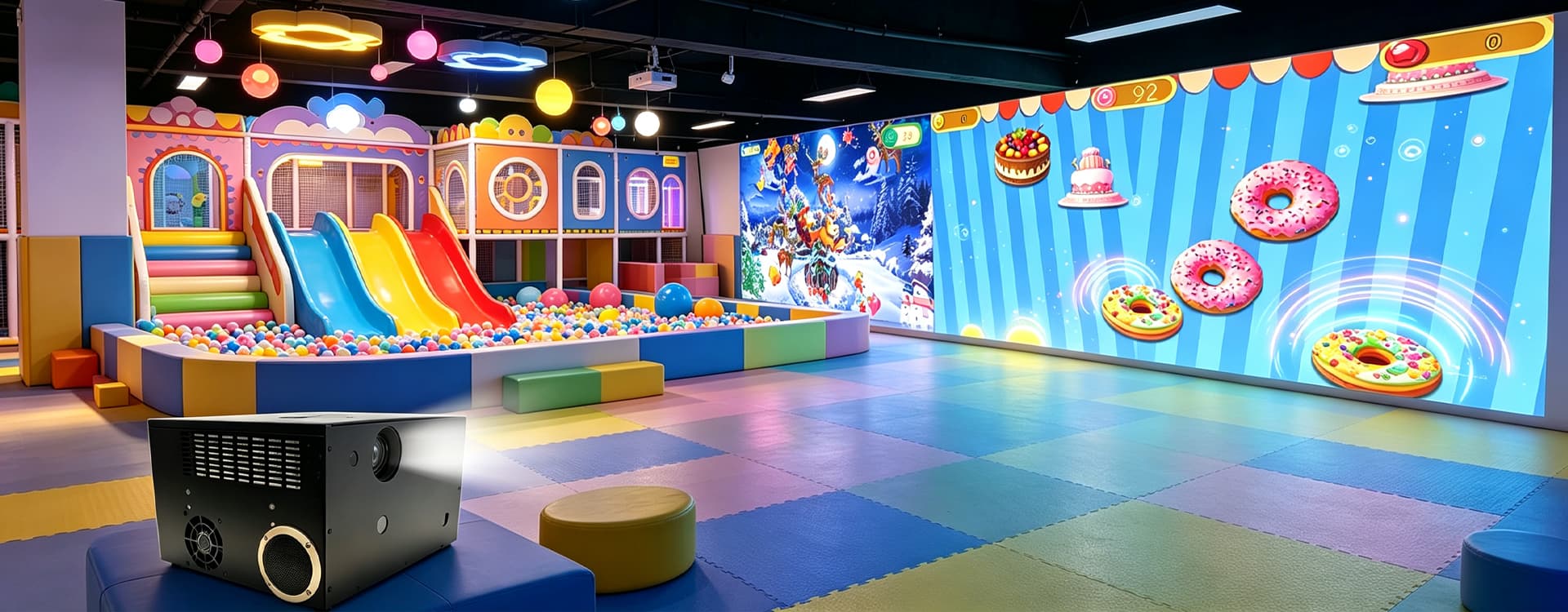

It can be quickly deployed in shopping malls, parks, campuses, exhibition halls, and cultural and sports venues, and supports interactive touch on the ground and walls without the need for complicated equipment. Timely response, rich interactive game resources, easily create an immersive interactive space, and increase the efficiency of scene traffic.

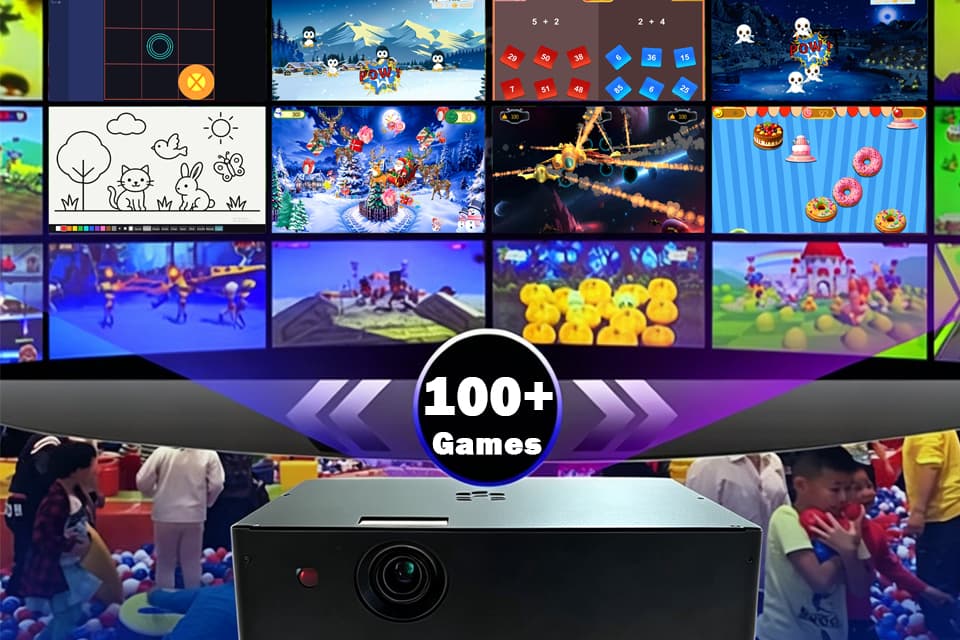

An all-in-one interactive game solution that requires no additional equipment. High-definition projection delivers stunning visuals, while a built-in console ensures stable operation of interactive programs; a signal receiver captures body movements in real-time, enabling seamless interaction between users and the display. The system is portable and easy to set up, allowing for flexible content updates to continuously attract visitors and enhance the venue's entertainment value and overall experience.

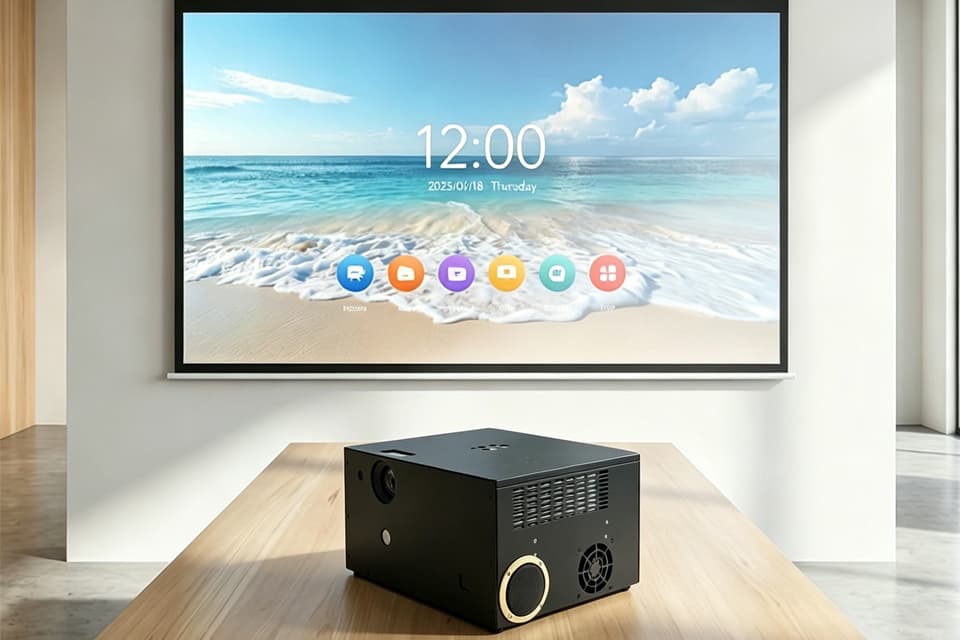

Featuring an ultra-portable, all-in-one design, it frees teaching demonstrations and business presentations from venue constraints, enabling lessons and proposal walkthroughs to be conducted anytime, anywhere, while effortlessly delivering professional educational content;
Its flexible deployment capabilities support mobile and interactive teaching across diverse scenarios, effectively sparking student interest in the classroom.

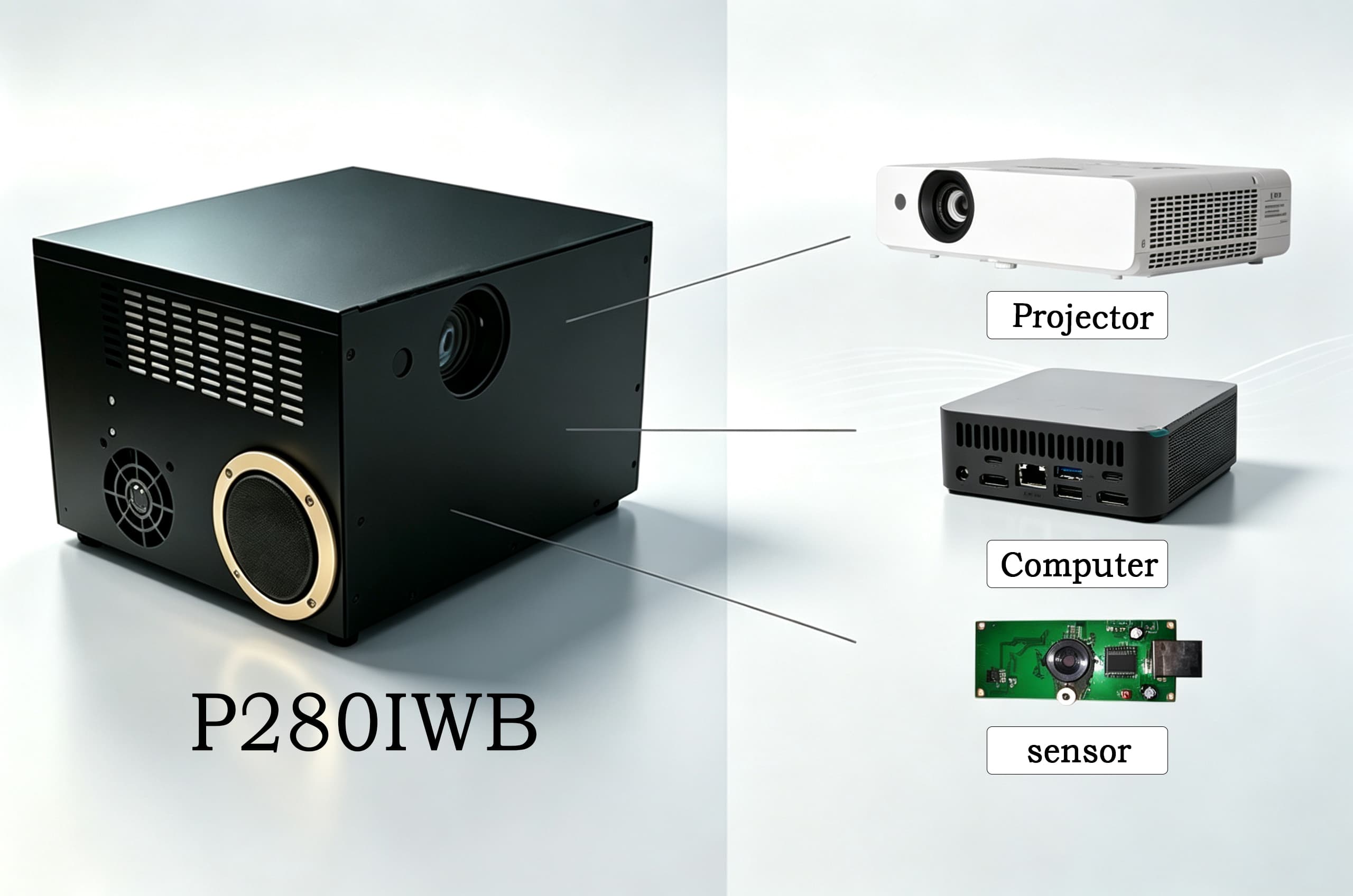

Breaking away from the traditional boundaries between projectors, speakers, computers, and stands, this device deeply integrates core modules such as projection systems, high-quality speakers, intelligent operating systems, wireless projection modules, and innovative mechanical structures to create a compact and powerful all-in-one body.
It is not just a single projection device, but a comprehensive solution that integrates large-screen immersive display, smart home entertainment center and efficient business presentation terminal, providing users with the ultimate "All-in-One" experience.
|
Power Supply |
AC 100V–240V~ (100V–240V AC), 50Hz/60Hz |
|
|
Power Consumption |
3.5A-1.5A，300W |
|
|
Power Consumption (Standby) |
When [Standby Mode] is set to [Network]: 1 W |
|
|
When [Standby Mode] is set to [Normal], [Output during Standby] in [Audio Settings] is set to [Off], and the <USB A (Browse/Wireless/Output Voltage)> terminal is not used for power supply: 6 W |
||
|
When [Standby Mode] is set to [Normal], [Output during Standby] in [Audio Settings] is set to [On], and the <USB A (Browse/Wireless/Output Voltage)> terminal is used for power supply (2A): 35 W |
||
|
LCD panel |
LCD Panel Size |
1.6 cm (0.63") (Aspect ratio: 4:3) |
|
Display Mode |
3-panel transmissive LCD system, three-primary-color method |
|
|
Drive Type |
Active Matrix |
|
|
Pixel |
786,432 Pixels (1024x768) x 3 Panels |
|
|
Lens |
Manual Zoom |
1.2x |
|
Manual Focus |
F=1.6-1.76 f=19.16mm-23.02mm |
|
|
light source |
UHM Lamp (230W) |
|
|
Brightness*1 |
3300lm |
|
|
When [Image Mode] is set to [Standard], [Lamp Power] is set to [Normal], [Power Saving] is set to [Off], and [Ambient Light Sensor] is set to [Off]. |
||
|
Center-to-Corner Area Ratio*1 |
85% |
|
|
Contrast*1 |
20000:1 (When [Image Mode] is set to [Standard], [Bullet Power] is set to [Normal], [Aperture] is set to [Open], [Energy Saving Setting] is set to [Off], and [High Light Sensor] is set to [Off]) |
|
|
Color System |
7 types (NTSC, NTSC 4.43, PAL, PAL-N, PAL-M, SECAM, PAL 60) |
|
|
Projected Image Size |
0.76m-7.62m(30"-300") |
|
|
Screen Aspect Ratio |
4:3 |
|
|
Projection Method |
[Front Projection / Floor-mounted], [Front Projection / Ceiling-mounted], [Rear Projection / Floor-mounted], [Rear Projection / Ceiling-mounted] |
|
|
Built-in speakers |
10W (Mono) x 1 |
|
|
Noise Level*1 |
When [Lamp Power] is set to [Normal]: 38 dB When [Lamp Power] is set to [Eco]: 35 dB When [Lamp Power] is set to [Low Noise]: 30 dB |
|
|
Operating Environment |
Operating Ambient Temperature*3 |
5°C (41°F) – 40°C (104°F) (Altitude: below 1,400 m (4,593 ft)) 5°C (41°F) – 35°C (95°F) (Altitude: 1,400 m (4,593 ft) – 2,700 m (8,858 ft)) |
|
Operating Environment Humidity |
20%–80% (non-condensing) |
|
|
Remote Control |
Power Supply |
DC3V (AAA/R03/LR03 batteries x2) |
|
Operating Range |
Approx. 7 m (22'11-5/8") (when operating directly in front of the signal receiver) |
|
|
Weight |
63g (2.22 oz) (including battery) |
|
|
Size |
Width: 44mm (1-23/32"), Length: 105mm (4-1/8"), Height: 20.5mm (13/16") |
|
